Description

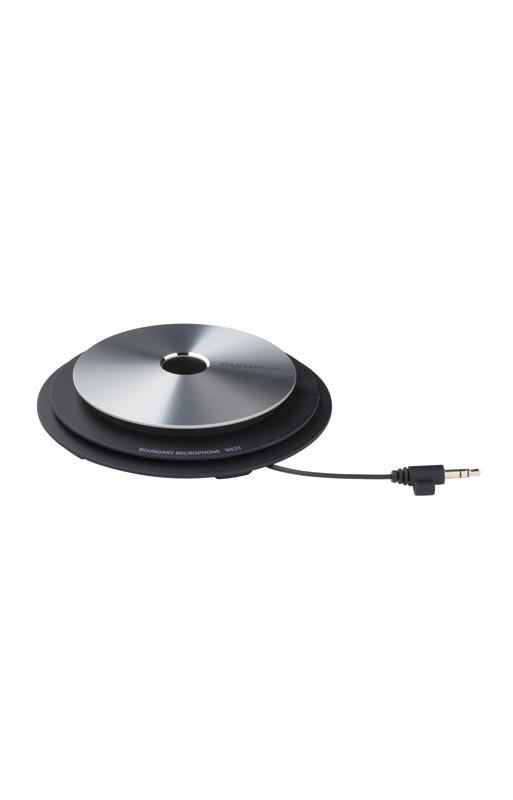

Connection of up to six units* enables high-quality recording with reduced noise even for meetings with large numbers of people.
Connecting units with 2-metre long cords enables recording in which the voice of each speaker in a large conference room is equally easy to hear.
- In the case of an Olympus digital voice recorder with stereo microphone jack specifications, you can connect three units to each of the L and R channels. Up to three units can be connected to a recorder with mono microphone jack specifications. If you connect more units, the sensitivity or S/N ratio may deteriorate or the recording may fail.
Specifications
Type | Electret condenser type |
---|---|
Directionality | Omnidirectional |
Frequency response | 70 to 10,000Hz |
Sensitivity | -35dB at 1kHz (0dB = 1V/Pa) |
Output impedance | 2.2kΩ |
Power supply | Plug-in-power system (1.5 to 5V) |
Cord length | 2m |
Plug | Ø3.5mm 3-pole mini plug (mono) |
Jack | Ø3.5mm 3-pole mini plug (mono) |
External dimensions | Ø120 x 23mm (excluding largest protrusions) |
Weight | Approx. 110g |
Accessories | Dedicated adapter (PA10) |
